Screw Conveyor
We designs and manufactures a wide range of screw conveyor used for the transport of cement, filler, fly ash, and other bulk materials in concrete batching plants, asphalt plants, and industrial facilities. Our screw conveyors are produced with high-quality steel, precision engineering, and durable gear motors to ensure long-lasting performance and minimal maintenance.
MaIn Features
* Designed for continuous and dust-free conveying
* Available in custom lengths and diameters (Ø168 – Ø323 mm)
* Direct flange connection to silos and weigh hoppers
* Easy assembly and maintenance
* Options for U-type, tubular, and inclined models
Types of Screw Conveyors
We manufacture different types of screw conveyors depending on application and material type:
Cement Screw Conveyor – For transferring cement and filler in batching plants
Bunker Screw Conveyor – For feeding material from bunkers or hoppers
Recycling Screw Conveyor – For conveying reclaimed material in asphalt or concrete recycling systems
U Type Screw Conveyor – For short-distance horizontal conveying and easy cleaning access
TECHNICAL TABLE
| Model | Diameter (mm) | Motor Power (kW) |
|---|---|---|
| SC-168 | 168 | 3.0 – 5.5 |
| SC-219 | 219 | 4.0 – 7.5 |
| SC-273 | 273 | 5.5 – 11 |
| SC-323 | 323 | 7.5 – 15 |
Why Choose MBA Screw Conveyors ?
* Over 15 years of manufacturing experience
* High wear resistance and low energy consumption
* Exported to more than 25 countries
* Full compatibility with MBA concrete and asphalt plants
ApplIcatIons
* Concrete batching plants
* Asphalt mixing plants
* Cement and filler storage silos
* Industrial material transfer systems
📞 Request a Quote
Looking for a reliable screw conveyor manufacturer?
Contact us to get a quotation or customized design for your project.
Or Call Us at
+90-546-726-06-06
(Whatsapp, Telegram)
SCREW CONVEYOR TYPES

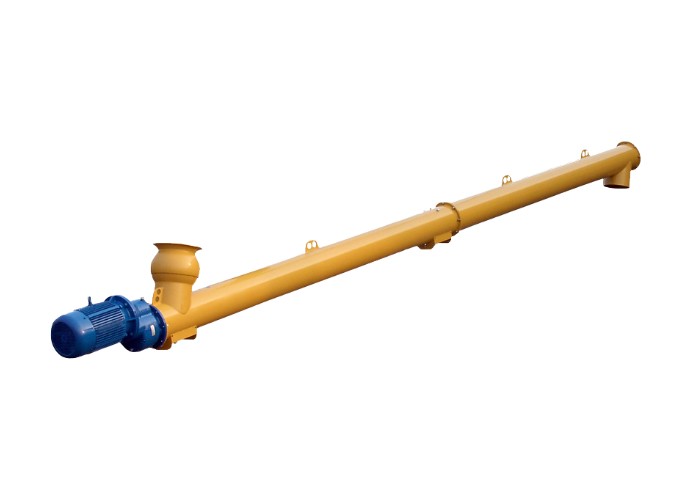

Cement Screw Conveyor
Efficiently transfers cement, fly ash, and filler materials from silos to weighing hoppers in concrete batching plants. Durable design and dust-free operation.

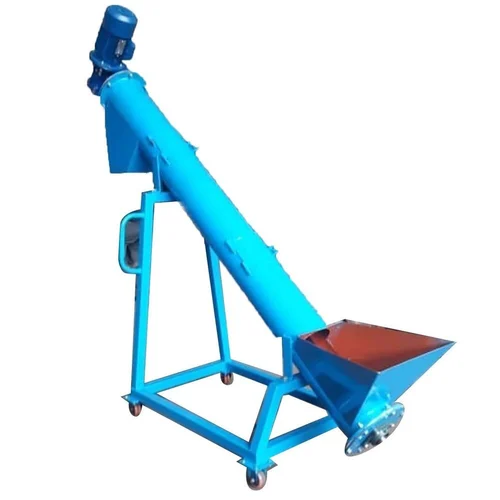

Bin Screw Conveyor
Designed for feeding material from bunkers or hoppers. Ideal for continuous material transfer in concrete and asphalt production systems.

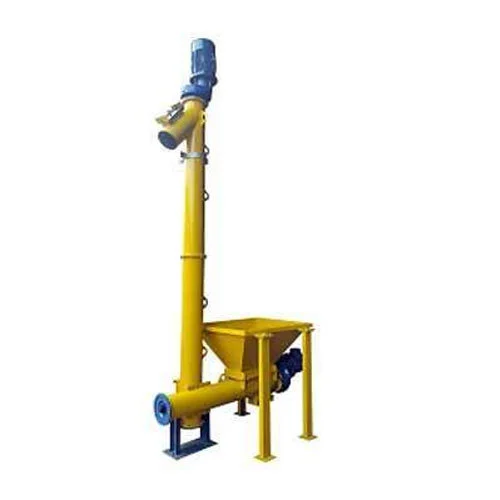

Vertical Screw Conveyor
Specially developed for handling reclaimed materials in recycling plants. Provides reliable and energy-efficient material movement.

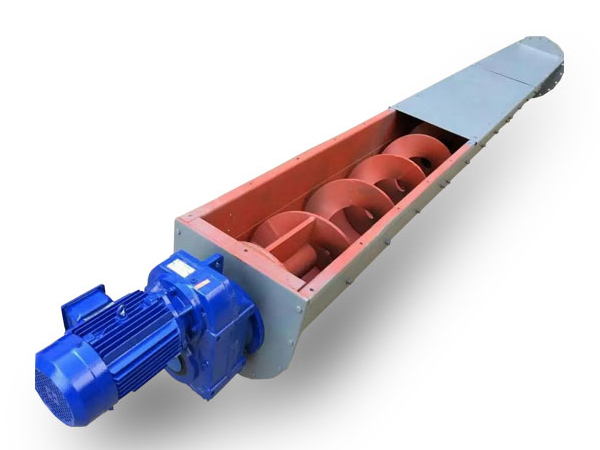

U Type Screw Conveyor
Compact and easy-to-clean design for horizontal conveying of dry materials. Perfect for short-distance transfer and maintenance access.
